E Ink는 보통 전자 잉크라고 불리는 몇 가지 유형의 전기영동 잉크를 발명했다. 플라스틱 필름에 전하를 띤 잉크를 얇은 적층으로 접착시키면 EPD라고 불리는 전자종이 디스플레이가 만들어 진다.

먼 미래의 얘기라고 들릴 수 있겠지만 전자 잉크는 화학, 물리학, 전자학의 융합 기술이다.

전자 잉크는 오늘날 인쇄업에서 종이 인쇄 시 사용하는 것과 동일한 색소를 사용한다.

단일색소 잉크시스템

E Ink JustTint™는 가변 투과성 필름으로 유리나 플라스틱 표면에 부착하여 밝기를 조정할 수 있다.

JustTint는 단일 색소로 구성되어 있으며, 기존 방식과는 다른 새로운 방식으로 구동한다.

JustTint는 검은색소에 전기장을 가하면 검은색 색소가 양옆으로 이동하여 캡슐의 투명한 영역을 확보하게 된다.

2 가지 색소의 잉크시스템 - E Ink Carta™

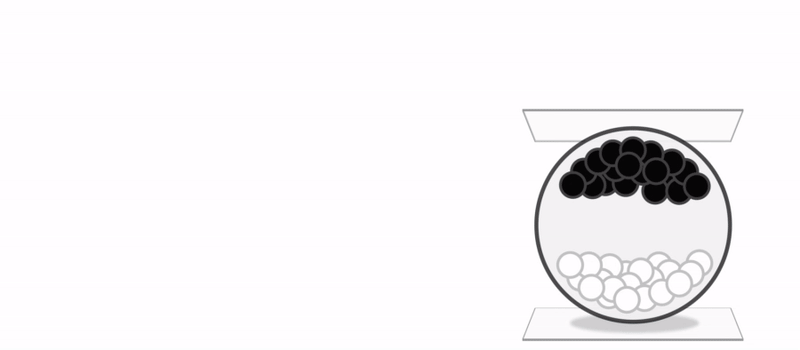

E Ink의 2 가지 색소 전자 잉크 시스템은 사람 머리카락 직경크기에 해당하는 수백만 개의 작은 마이크로캡슐로 구성되어 있다. 각 마이크로캡슐은 음전하를 띤 흰색 입자와 양전하를 띤 검은색 입자가 투명한 유체에 포함되어 있다. 양극 또는 음극의 전기장이 가해지면 해당 입자가 눈으로 볼 수 있는 마이크로 캡슐의 상단으로 이동하여 표면이 흰색이나 검은색으로 나타나게 된다.


E Ink Carta™ films utilize this two particle system.

3가지 색소의 잉크 시스템 – E Ink Spectra™ 3000

E Ink의 Spectra 제품군은 마이크로컵 구조로 3가지 색소의 잉크 시스템을 활용한다.

Spectra 시스템은 ESL(Electronic Shelf Labels)용으로 특별히 제작되었으며, 검은색, 흰색,

빨간색이나 검은색, 흰색, 노란색으로 구성된다. Spectra 시스템은 2가지 색소 잉크 시스템과

유사하게 전기장이 가해지면 위쪽과 아래쪽 전극으로 피그먼트의 이동이 원활해 진다.

Spectra 시스템은 마이크로캡슐을 사용하는 대신 액체로 채워 밀봉된 마이크로컵을 사용한다.

4가지 색소 시스템 – E Ink Spectra™ 3100

E Ink Spectra™ 3100 is E Ink’s next generation Spectra product. Spectra 3100 is a four particle ink system which incorporates retailer’s requests for additional color functionality, by utilizing black, white, red and yellow particles to offer vibrant color for rich content. Spectra 3100 has an improved update time, and an expanded temperature range for red and yellow states to satisfy retailers’ needs to operate ESL tags in various environments within their stores. In addition, Spectra 3100 is offered in panels with an updated all-in-one driver IC that supports premium ESLs with higher resolution across various sizes.

4가지 색소 시스템 - E Ink Gallery™ & E Ink Prism™

Based on the Advanced Color ePaper (E Ink ACeP™) Platform

2016년 E Ink는 다중 색소 잉크 시스템인 Advanced Color ePaper(E Ink ACeP™)를 선보였다. ACeP™는 칼라 색소만을 이용하여 8가지 원색으로 Full 칼라를 구현할 수 있고 마이크로캡슐이나 마이크로컵 구조로 만들어 진다. 모든 픽셀에 포함 되어있는 칼라 색소들에 의해 칼라색상이 구현되기 때문에 칼라 필터가 필요 없다.

ACeP™은 조명이 있는 상태에서 일반 E Ink ePaper 특징과 같이 초 저전력 및 종이와 같은 가독성을 가진다.


This system is found in E Ink's Gallery and Prism product lines.

Learn More.

FAQ

Learn more about E Ink and how our technology works.

  • What is E Ink?

    E Ink is the creator of electronic ink — the optical component of a film used in Electronic Paper Displays. Although futuristic-sounding, electronic ink is actually a straightforward fusion of existing knowledge of chemistry, physics and electronics to create this new material. It's so much like paper, it actually utilizes the same pigments used in the printing industry today.

    While E Ink has several types of electronic ink, we became best known for our microcapsule technology. In this system, the electronic ink is made up of millions of tiny microcapsules, about the diameter of a human hair. Each microcapsule contains positively charged white particles and negatively charged black particles suspended in a clear fluid. When a positive or negative electric field is applied, corresponding particles move to the top of the microcapsule where they become visible to the user. This makes the surface appear white or black at that spot.

  • Does E Ink have a color product or is it only monochrome?

    E Ink has several color products available.

    E Ink also offers a three to five color product called E Ink Spectra, which is optimized for electronic shelf labels and point-of-purchase sale applications.

    In addition, E Ink offers a one-color product called E Ink Prism, which is optimized for the Architecture market.

    For full color, we have E Ink Gallery; and E Ink Kaleido in 4096 colors.

  • How long does it take to update an image on an E Ink Matrix display?

    An E Ink display module supports numerous modes for updating the display. Different modes exist to support the different update requirements. Update times can be as short as 120 ms. for the entire display. However, because E Ink screens are bi-stable, only the regions of the screen that are changing require updating. Any pixels that are not changing do not require updating.

  • Can an E Ink Matrix display support animation or video rates?

    Using the faster update modes, E Ink screens can support animation quality video rates. A number of examples are available from customers that show examples of E Ink screens showing video. However, constant updates reduce the power efficiency of our ink systems. Current production modules do not support video rate updates.
